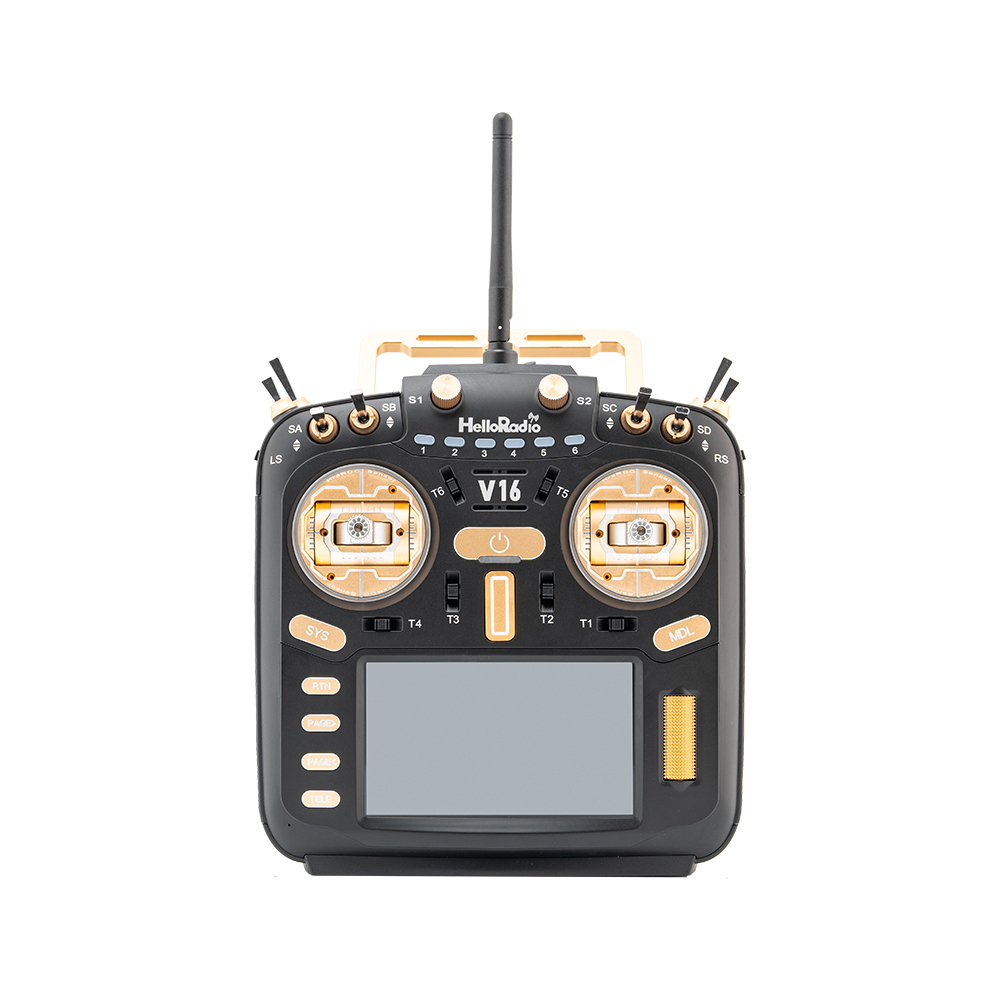

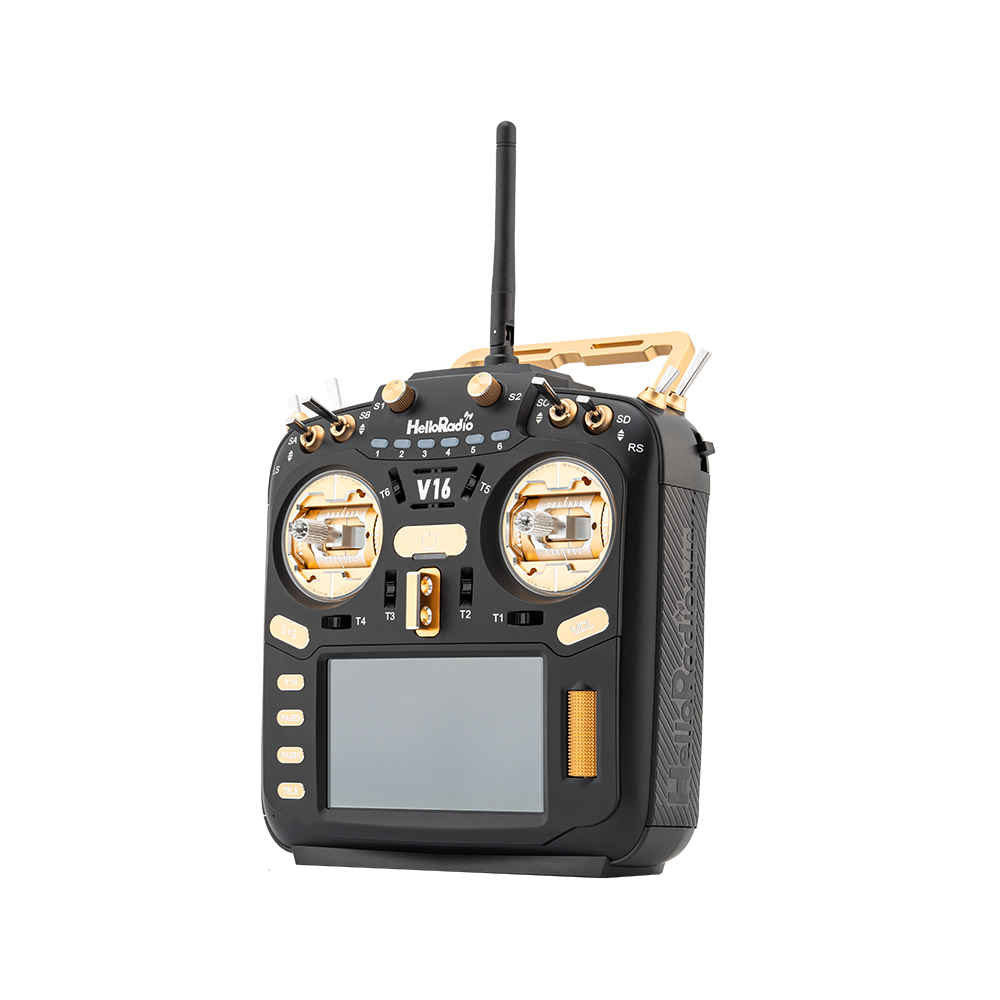

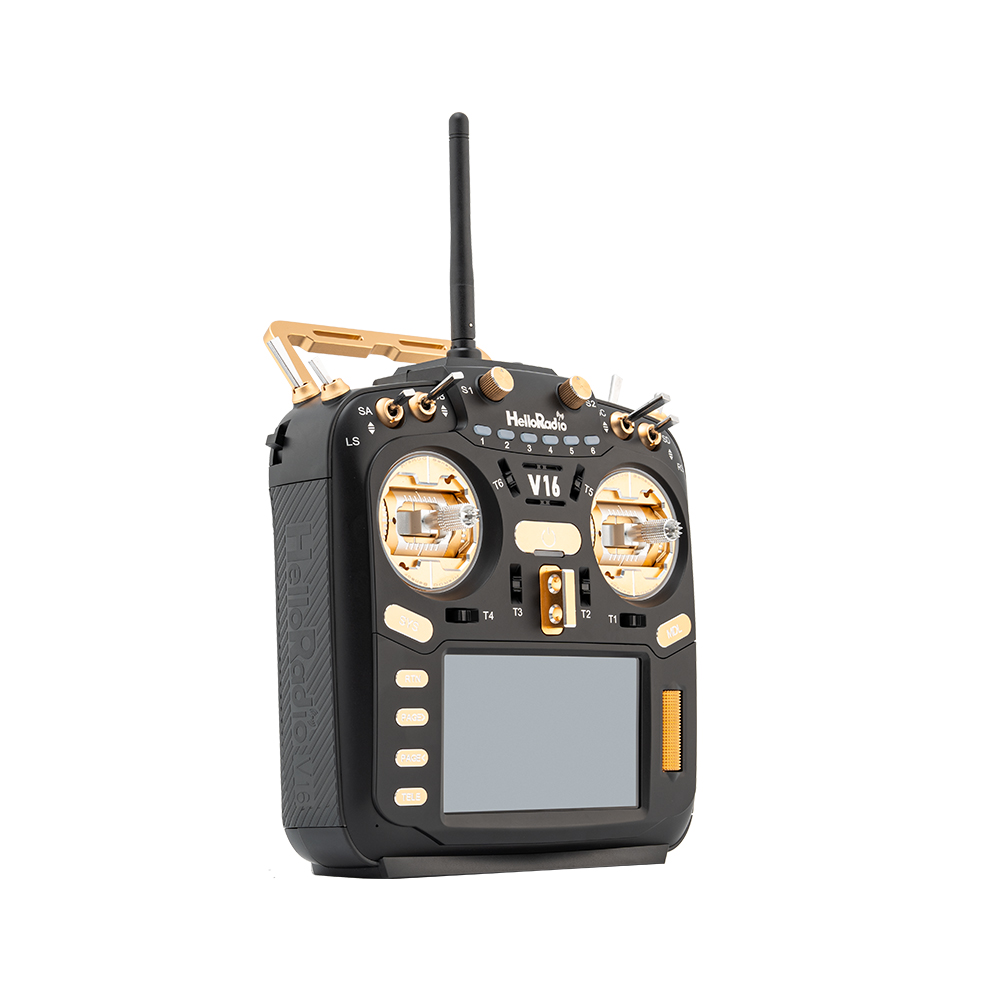

V16R CNCR9 Gold

Specification parameters

Specification and size: 287 ✖ one hundred and twenty-nine ✖ 184mm (all metal CNC kit)

Weight 750 grams (excluding battery)

Transmission frequency: 2.400GHZ-2.480GHZ

Transmitter module (optional):

Version 1: Built in four in one protocol high-frequency module (CC2500 CYRF6936 A7105 NRF2401)

Version 2: Built in ELRS (SX1280)

Transmission power:

Built in four in one protocol high-frequency module: maximum 100MW

Built in ELRS: adjustable maximum transmission power of 1000MW

Antenna gain: 2DB

Working current: 400MA

Working voltage: 6.6-8.4VDC

Remote control distance:>2KM @ 22DBM

Open source firmware: EDGTX (factory default)

Built in module: MULTIPROTOCOL-MODULE (4IN1) - OR-EXPRESSLRS (ELRS)

Number of channels: up to 16 channels (depending on the receiver)

Display screen: 4.3-inch TFT full-color display screen with a resolution of 480 * 272

Joystick: VG01 (RDC90) potentiometer joystick

External module compartment: standard JR compartment size

Upgrade method: Supports USB online/SD card offline upgrade

Please note that the transmission power and frequency must comply with local regulations when using the remote control.
